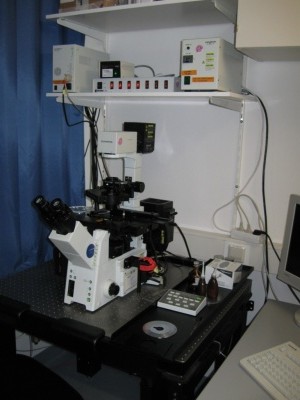

| Olympus IX-81 |
| Inverted epifluorescence microscope |
 |
|
| Fully automated research grade fluorescence microscope with Differential Interference Contrast DIC and phase contrast for transmitted light. Detection with Diagnostic Instruments RT slider cooled CCD camera. | ||
| special features | automated multicolor imaging, Z-stacks,
time series highly sensitive cooled monochrome CCD camera with color mode for transmitted light. |
|
| microscope | Olympus IX-81 inverted fully motorized fluorescence microscope, transmitted light with DIC or phase contrast | |
| objectives | 10x/0.25 Olympus UPlanFL, Ph1 20x/0.30 Zeiss LD A-Plan, Ph1 (Long working distance) 40x/0.75 Olympus UPlanFL, Ph2 60x/1.35 Oil Olympus UPLSAO, DIC 100x/1.35 Oil Olympus UPlanFL, DIC 20x/0.8 Oil UPlanApo |
|
| illumination | Halogen HBO |
|
| detection | Andor Clara interline CCD camera (...
more information) |
|
|
reflectors |
Filter Cube 1.
U-MWU2: BP330-385 BA420 DM400 (DAPI) Filter Cube 2. U-MCFPHQ: BP425-445 BA460-510 DM450 (CFP) Filter Cube 3. U-MWNiba: BP470-495, BA520IF, DM510-550 (FITC, NBD, Calcein, GFP, YFP) Filter Cube 4. U-MWG2: BP510-550, BA590, DM570 (Rhodamine, Texas Red, RFP) Filter Cube 5. Chroma U-N41008: BP590-650, BA663-737, DM660 (CY5) Filter Cube 6. DIC |
| software | MetaView imaging accquisition and analysis software (Molecular Devices) |
| incubation | temperature controlled stage insert |
| more |
Olympus information on
IX81 |
