Equipment |

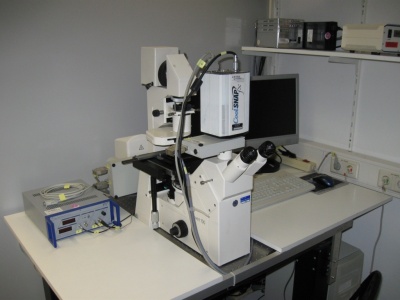

| Zeiss Axiovert 100 |
| Inverted epifluorescence microscope |
 |
|
| Manual research grade
fluorescence microscope with phase contrast for transmitted light. Fast Ludl filter wheels for excitation and emission and multi-wavelength filter cube for cfp/yfp/rfp. Piezo based motorized Z-achses positioning for one objective Detection with Photometrics CoolSnap FX cooled CCD camera. |
||
| special features | fast automated multicolor imaging, Z-stacks, time series highly sensitive cooled monochrome CCD camer |
|
| microscope | Zeiss axiovert 100 inverted manual fluorescence microscope, transmitted light with phase contrast | |
| objectives | 20x/0.40 Zeiss LD Achroplan, Phase 2 40x/0.60 Zeiss LD Achroplan 63x/1.25 Zeiss Neofluar, Phase 3, Oil 100x/1.30 Zeiss Neofluar, Phase 3, Oil Princeton Instruments Piezo Z-achses positioning for one objective |
| illumination | Halogen HBO |
| detection | Photometrics CollSnap FX cooled CCD camera |
|
reflectors |
Filter Slider 1 Pos. 1. FITC: BP465-497, BA516-556, DM506 (AHF F36-501 HQ) Pos. 2. Cy3, Rhodamine: BP511-551, BA573-613, DM562 (AHF F36-542 HQ) Pos. 3 Multi-Wl cfp/yfp/rfp (Chroma) Filter Slider 2 |
| software | MetaMorph imaging accquisition and analysis software (Molecular Devices) |
| incubation | Option: temperature controlled stage insert |
| more |
